Shutit Badass - Weld On Strap - Uphill Hinge Set - Steel - 680kg

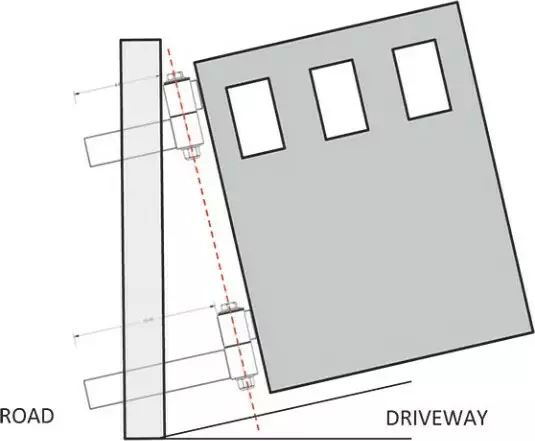

The BadAss Strap Hinge, is a barrel hinge that includes a 6" (152mm) and 10” (254mm) strap for convenient and flexible gate installations. The strap hinge is also one of SHUT IT’s strongest gate hinges with more bearing load than any hinge on the market. By combining different lengths top and bottom it is the ideal solution for opening gate on an uphill gradient.

• Suitable for motorised, uphill or heavy gates
• Four + Four sealed maintenance free bearings
• Opens to 180° if required
• Installation - Square to Square
• Leaf straps can be cut to length
• Maximum Gate Weight - 680kg
• Minimum Post Size - 40mm
• Fixing Method - Weld On
• Hinge Weight - 6.1kg
