Double Door 1 Point & 2 Point Locking Exit Devices - SIL

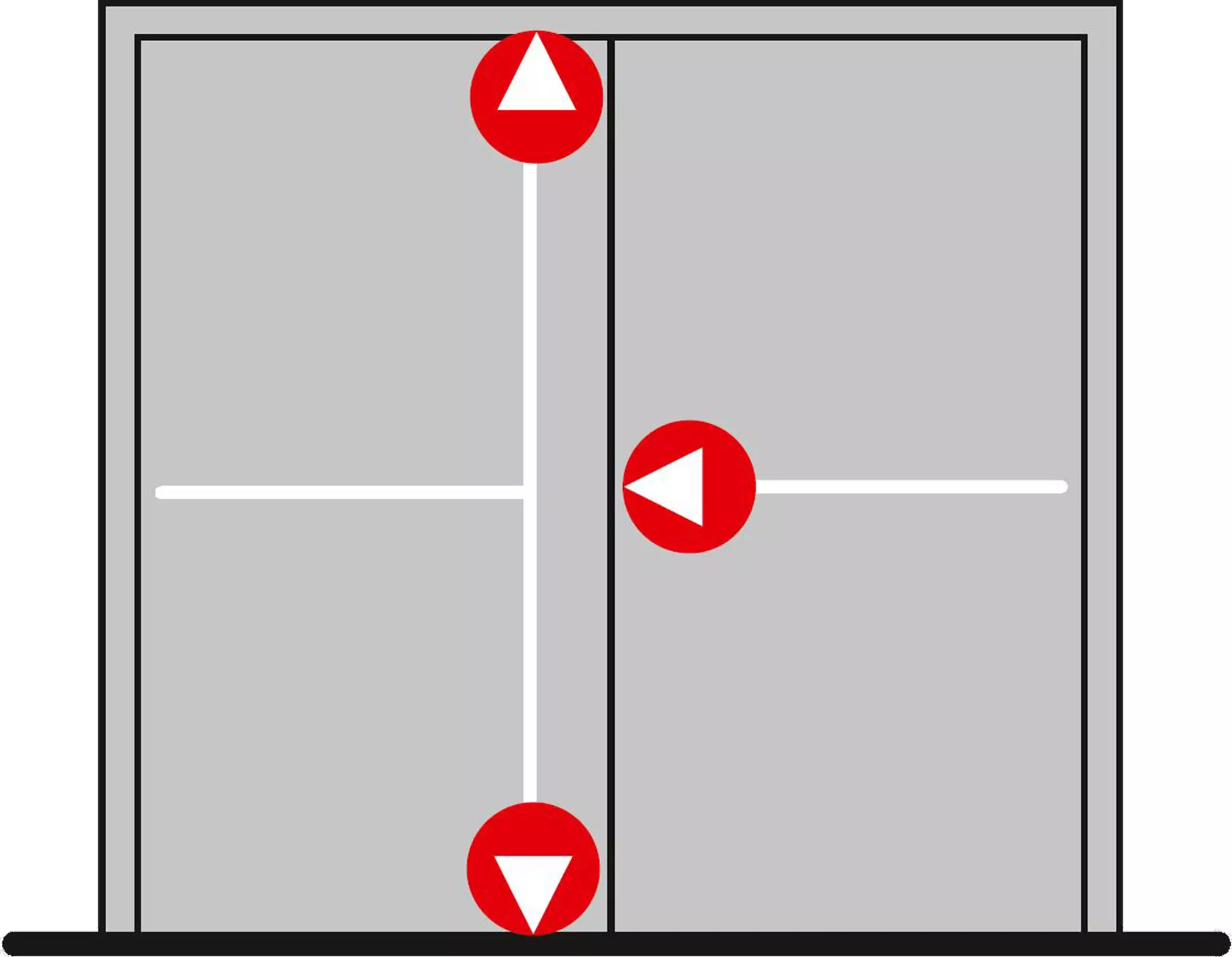

Double door set

Active leaf - 1 point locking rim exit device

Inactive leaf - 2 point locking vertical rod exit device

• Type - Push bar
• Application - Double door
• Max panel width - 1000mm (See note)
• Max panel height - 2270mm (See note)
• Max panel weight - 200kg
• Handed - No
• Fire rated - Yes (Select option)
• Dogging device - Yes (Not used for fire rated doors)
• This item is purchase to order & non returnable

<>Note

Contact us for door widths over 1000mm & up to 1300mm & or door panel heights over 2270mm & up to 3400mm
