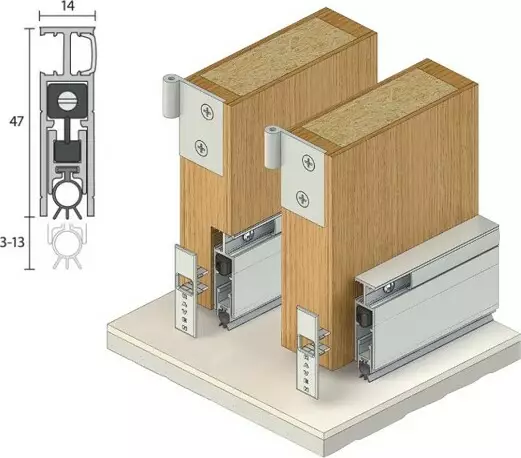

Face mounted or semi-morticed into the bottom of solid core single and double butt hinged doors
The RP35Si can also be face mounted to the bottom of metal doors & is spring loaded to lift clear of the floor when the door is opened
Acoustically designed & featuring silicon gaskets for medium temperature smoke and fire door applications
Operated automatically by pressure against the door jamb on its adjustable strike
- Seal - Grey silicone rubber
- Min/Max Gap - 3 - 13mm
- Finish - Clear anodised
- Length - 380-1220mm (Seals cut back to exact size)
- See data sheet for full specification
| Seal length (mm) |
Cut down to (mm) |
| 1220 |
1070 |
| 1070 |
920 |
| 920 |
820 |
| 820 |
600 |
| 600 |
380 |
| 380 |
295 |
Length:
Freight Quote Required
Please note: Raven products over 1000mm will be despatched directly from Raven and will therefore need a freight estimate to be provided before the order can be placed. By adding your items to the basket, you will be creating a freight quote request. Products sent to residential addresses incur extra cost from Raven.
$150.02 NZD
Approx $84.32 USD excl GST
RP35Si Door Bottom Seal Auto CA - 1220mm
Aluminium Door Specific
