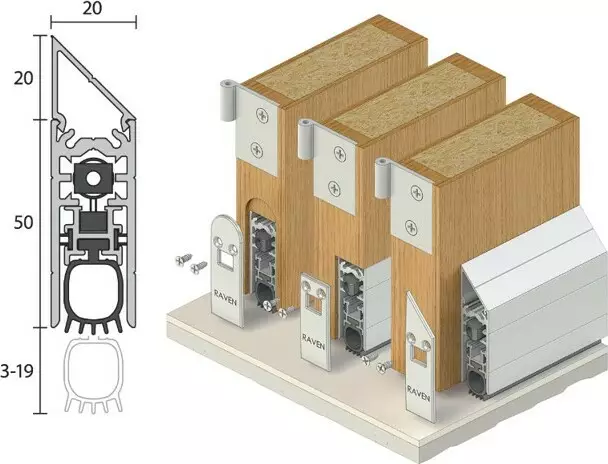

A heavy duty adjustable automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened
Acoustically designed, with a silicon gasket for medium temperature smoke applications
Operated automatically by pressure on the door jamb or stop by its adjustable strike
Includes aluminium cover for concealed fixing for face mounted installation.
Can be face mounted or fully morticed into single or double solid core hinged doors
- Seal - Black silicone rubber
- Min/Max Gap - 3 - 19mm
- Finish - Silver Anodised - CA
- Length - 380-1220mm (Seals cut back to exact size)
- See data sheet for full specification
| Seal length (mm) |
Cut down to (mm) |
| 1220 |
1070 |
| 1070 |
920 |
| 920 |
820 |
| 820 |
600 |
| 600 |
380 |
| 380 |
295 |
Length:
Freight Quote Required
Please note: Raven products over 1000mm will be despatched directly from Raven and will therefore need a freight estimate to be provided before the order can be placed. By adding your items to the basket, you will be creating a freight quote request. Products sent to residential addresses incur extra cost from Raven.
$194.55 NZD
Approx $109.35 USD excl GST
RP99Si Door Bottom Seal Auto CA - 1070mm
Aluminium Door Specific
